Air Conditioning

A/C Line Repair Products

ACR100 kit image

ACR100

Standard A/C Hose to Tube Kit

Seamless A/C Repairs for Hundreds of Vehicles

ACR100 Advantages:

  • All-aluminum materials for improved corrosion resistance (no dissimilar materials)

  • Includes adapters (#6 to 5/16”, #6 to 3/8”, #8 to 1/2”, #10 to 5/8”, #12 to 3/4”), CP360° Seal Clamp Pliers, #6 Hose (5’), #8 Hose (5’), #10 Hose (5’), and #12 Hose (5’)

  • Make connections by hand (no specialty tools required)

  • Size marked on fittings for easy identification

  • Working pressure 450 PSI

  • Can be used for high or low side repairs

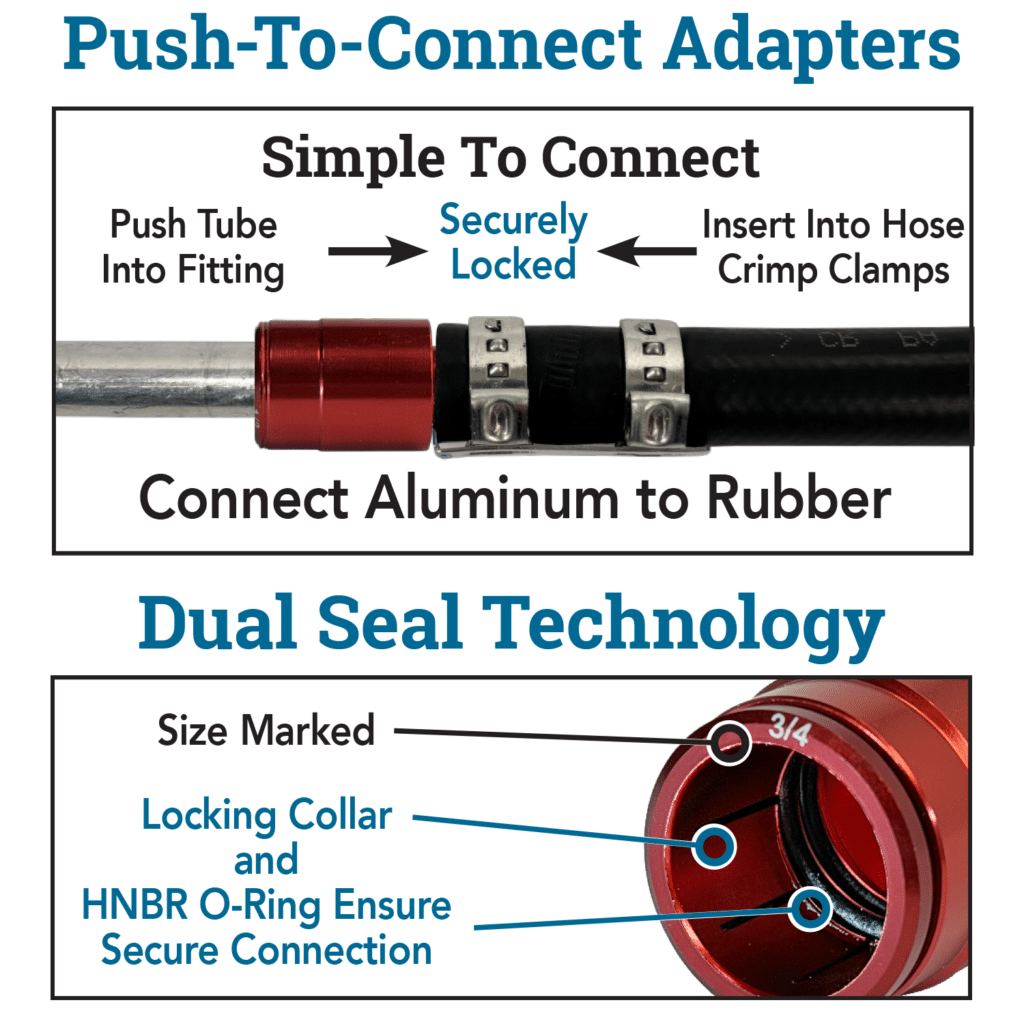

  • Simple installation: Side 1: Cut, ream/chamfer, clean tubing, and push tube into fitting Side 2: Place clamps
    set onto hose, push adapter into hose, and crimp clamps

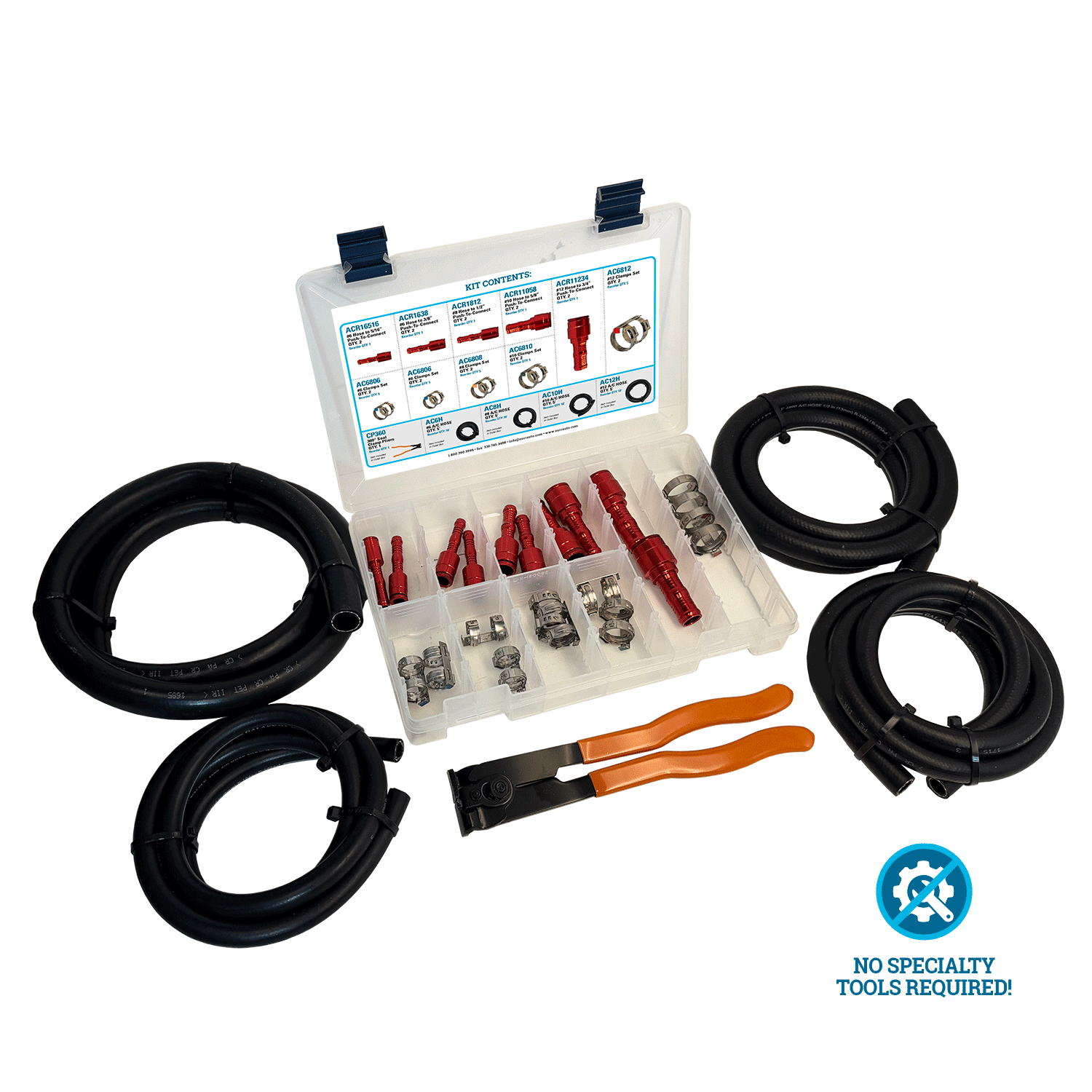

ACR100 Kit Includes

Bold items included in ACR100 Kit | Italic items are available to order.

Image Part# Description Qty
ACR16516 image

ACR16516

#6 Hose to 5/16”

2
ACR1638 image

ACR1638

#6 Hose to 3/8”

2
ACR1812 image

ACR1812

#8 Hose to 1/2”

2
ACR11058 image

ACR11058

#10 Hose to 5/8”

2
ACR11234 image

ACR11234

#12 Hose to 3/4”

2

Bold items included in ACR100 Kit | Italic items are available to order.

Image Part# Description Qty
AC6H-new image

AC6H

#6 A/C Hose – 5/16″ (8mm) ID

5′
AC8H-NEW image

AC8H

#8 A/C Hose – 13/32″ (10mm) ID

5′
AC10H-NEW image

AC10H

#10 A/C Hose – 1/2″ (13mm) ID

5′
AC12H-NEW image

AC12H

#12 A/C Hose – 5/8″ (16mm) ID

5′

Bold items included in ACR100 Kit | Italic items are available to order.

Image Part# Description Qty
AC6806 image

AC6806

#6 Clamps Set

4
AC6808 image

AC6808

#8 Clamps Set

2
AC6810 image

AC6810

#10 Clamps Set

2
AC6812 image

AC6812

#12 Clamps Set

2

Bold items included in ACR100 Kit | Italic items are available to order.

Image Part# Description Qty

CP360

360° Seal Clamp Pliers

1
