ACR110M
Metric A/C Hose to Tube Kit
Seamless A/C Repairs for Hundreds of Vehicles
ACR110M Advantages:
-
All-aluminum materials for improved corrosion resistance (no dissimilar materials)
-
Includes adapters (#6 to 8mm, #6 to 9mm, #6 to 10mm, #8 to 12mm, #10 to 14.5mm, #10 to 15mm, #10 to 16mm, #12 to 19mm), CP360° Seal Clamp Pliers, #6 Hose (5’), #8 Hose (5’), #10 Hose (5’), and #12 Hose (5’)
-
Make connections by hand (no specialty tools required)
-
Size marked on fittings for easy identification
-
Can be used for high or low side repairs
-
Working pressure 450 PSI
-

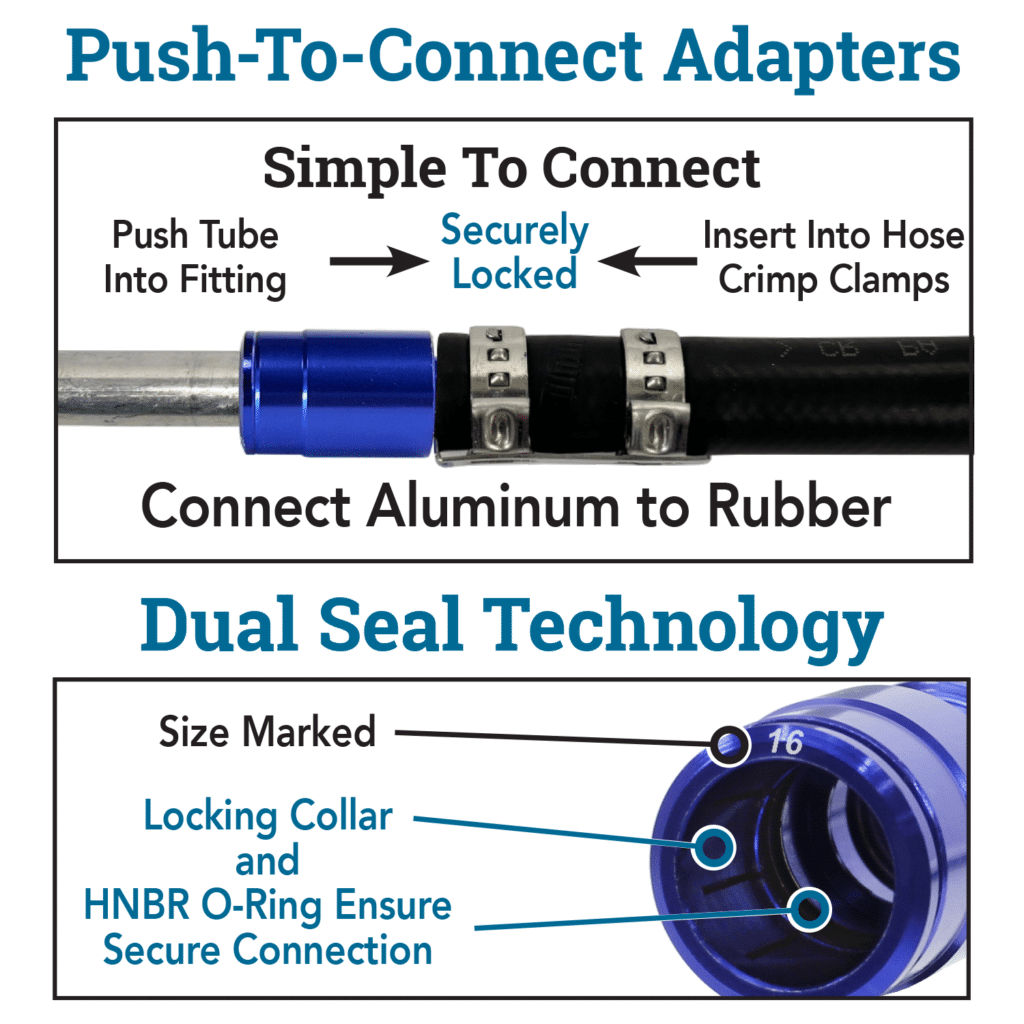

Simple installation: Side 1: Cut, ream/chamfer, clean tubing, and push tube into fitting Side 2: Place clamps
set onto hose, push adapter into hose, and crimp clamps

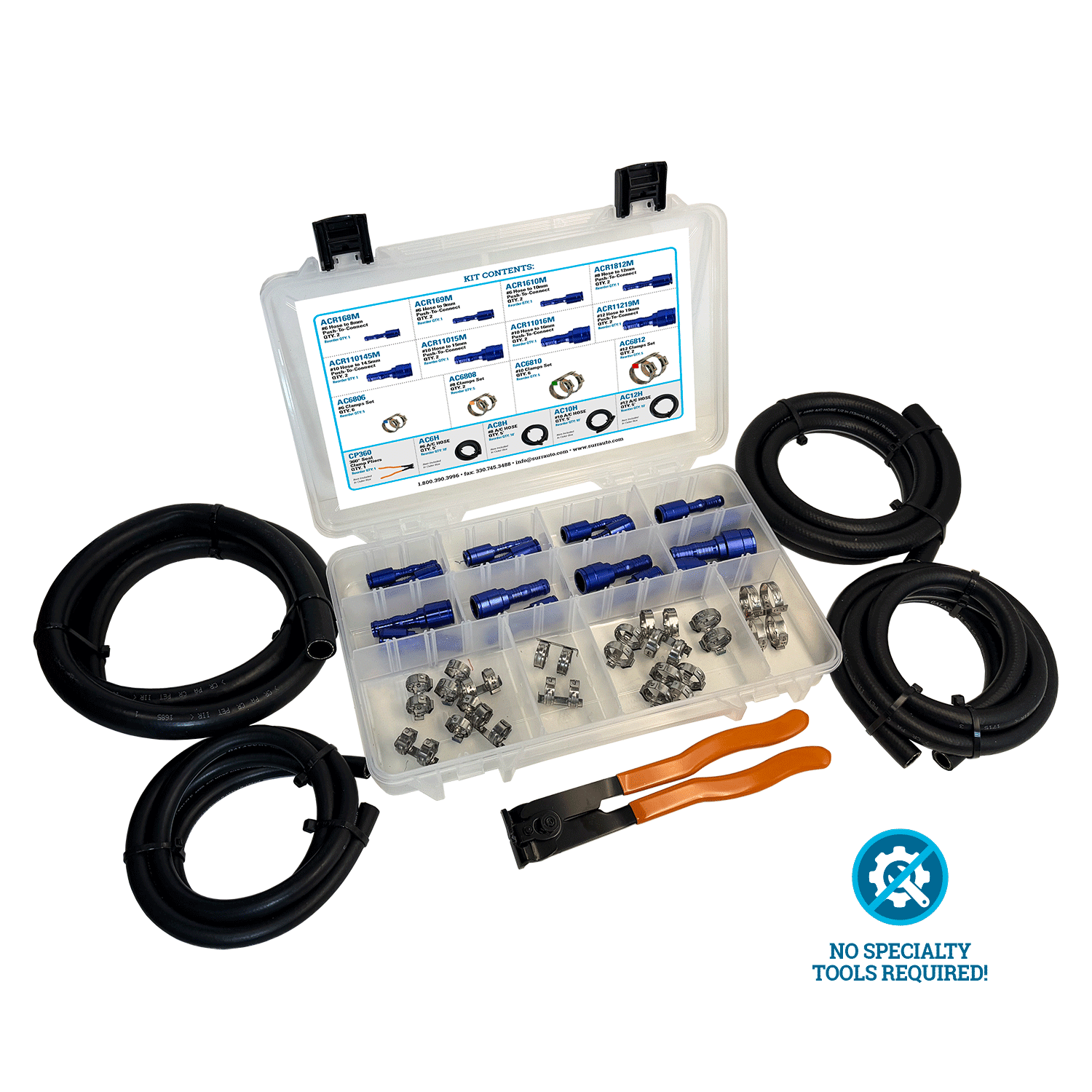

ACR110M Kit Includes
Bold items included in ACR110M Kit | Italic items are available to order.
| Image | Part# | Description | Qty |
|---|---|---|---|
|
ACR168M |
#6 Hose to 8mm |
2 |
|
ACR169M |
#6 Hose to 9mm |
2 |
|
ACR1610M |
#6 Hose to 10mm |
2 |
|
ACR1812M |
#8 Hose to 12mm |
2 |
|
ACR110145M |
#10 Hose to 14.5mm |
2 |
|
ACR11015M |
#10 Hose to 15mm |
2 |
|
ACR11016M |
#10 Hose to 16mm |
2 |
|
ACR11219M |
#12 Hose to 19mm |
2 |
Bold items included in ACR110M Kit | Italic items are available to order.
| Image | Part# | Description | Qty |
|---|---|---|---|
|
AC6H |
#6 A/C Hose – 5/16″ (8mm) ID |
5′ |
|
AC8H |
#8 A/C Hose – 13/32″ (10mm) ID |
5′ |
|
AC10H |
#10 A/C Hose – 1/2″ (13mm) ID |
5′ |
|
AC12H |
#12 A/C Hose – 5/8″ (16mm) ID |
5′ |
Bold items included in ACR110M Kit | Italic items are available to order.
| Image | Part# | Description | Qty |
|---|---|---|---|
|
AC6806 |
#6 Clamps Set |
6 |
|
AC6808 |
#8 Clamps Set |
2 |
|
AC6810 |
#10 Clamps Set |
6 |
|
AC6812 |
#12 Clamps Set |
2 |
Bold items included in ACR110M Kit | Italic items are available to order.
| Image | Part# | Description | Qty |
|---|---|---|---|
|
CP360 |
360° Seal Clamp Pliers |
1 |
